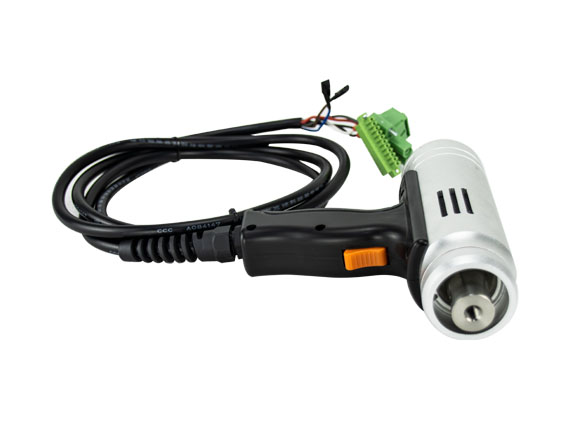

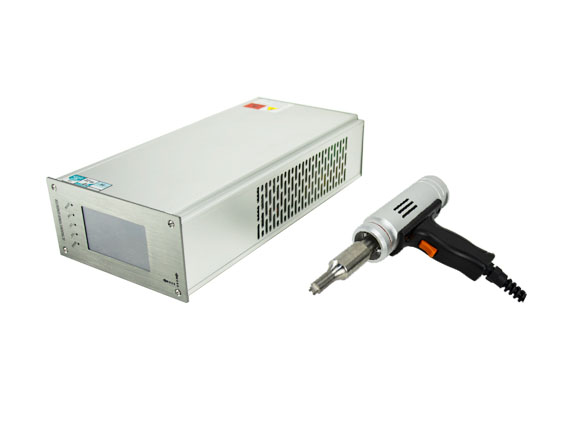

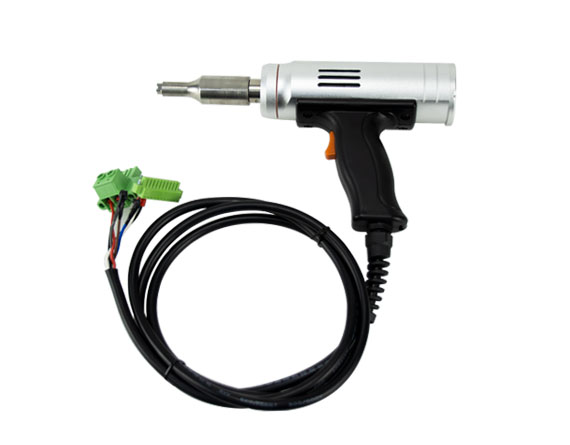

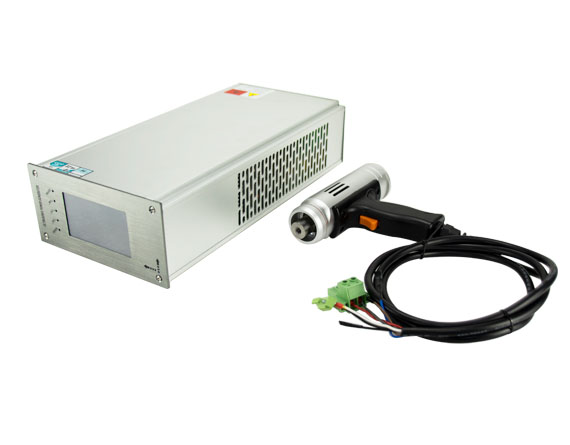

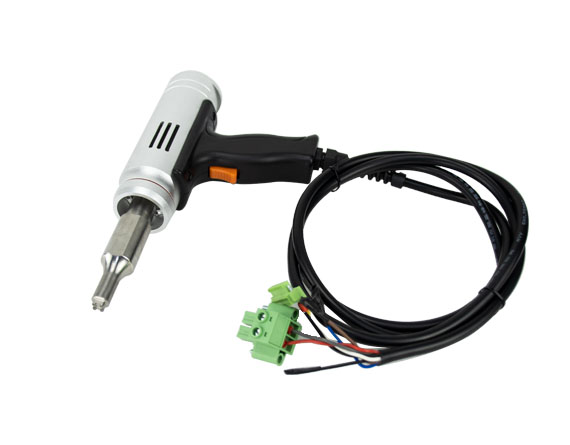

35kHz Ultrasonic Spot Welder
Model · MC-UH3506
A lightweight 35 kHz spot-welding gun with interchangeable sonotrodes and a digital generator.
- Frequency
- 35 kHz
- Frequency range
- 34.20–35.40 kHz
- Power
- 500 W
Designed for your process.
A lightweight 35 kHz spot-welding gun with interchangeable sonotrodes and a digital generator.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Automotive manufacturing
Illustrative automotive production context for assembly and integration discussions.
⊕Plastic enclosures & electronics
Conceptual polymer parts and fixtures for joint-design discussions.
⊕Medical-device components
Conceptual translucent polymer components in a clean assembly environment.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Frequency | 35 kHz |
|---|---|
| Frequency range | 34.20–35.40 kHz |
| Power | 500 W |
| Amplitude | 10–100% adjustable |
| Horn material | Titanium / steel / aluminum |
| Generator dimensions | 390 × 195 × 100 mm |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
Useful answers.
What is the MC-UH3506 used for?+
A lightweight 35 kHz spot-welding gun with interchangeable sonotrodes and a digital generator.
What should I provide for model selection?+
Share your material, part drawing, joint or cutting geometry, target output and installation constraints. For replacement components, include the existing generator, frequency and connection dimensions.
Can I confirm a configuration before ordering?+
Yes. Use the inquiry form to describe your application and the required model. Final tooling, electrical supply, interfaces and performance targets should be agreed for your project.
