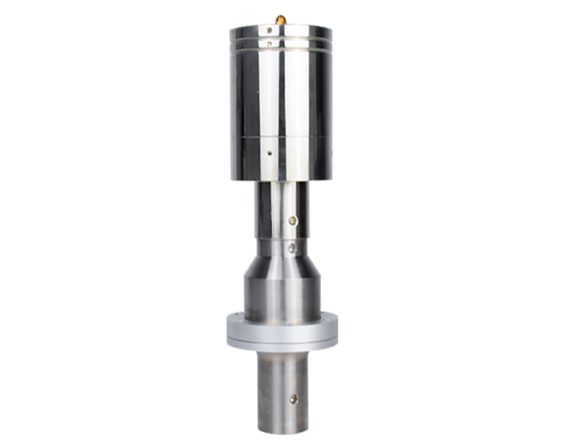

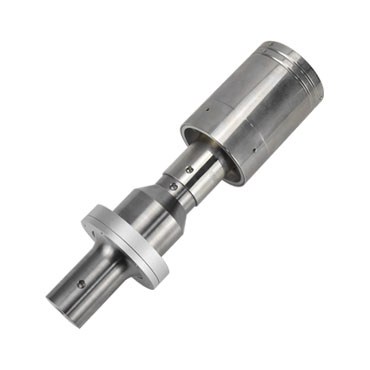

20 kHz High-Power Ultrasonic Transducer
Model · MC-CG-T2030
A high-power 20 kHz transducer for ultrasonic welding. Mechanical and electrical compatibility must be checked for replacement use.
- Frequency
- 20 kHz ±0.5 kHz
- Maximum output power
- 3000 W
- Capacitance
- 18500–21500 pF
Designed for your process.
A high-power 20 kHz transducer for ultrasonic welding. Mechanical and electrical compatibility must be checked for replacement use.
The right result depends on the complete setup: equipment, tooling, material and process settings. Use the technical information below to begin selection, then confirm the configuration around your production requirements.
Read the selection guide →From equipment to application.
Explore relevant workpieces and industry contexts.
⊕Plastic enclosures & electronics
Conceptual polymer parts and fixtures for joint-design discussions.
⊕Automotive manufacturing
Illustrative automotive production context for assembly and integration discussions.
AI-generated application concepts illustrate industry contexts, not actual customer facilities or verified production results. Equipment selection is confirmed for each project.
The details that matter.
| Frequency | 20 kHz ±0.5 kHz |
|---|---|
| Maximum output power | 3000 W |
| Capacitance | 18500–21500 pF |
| Amplitude | 20 μm |

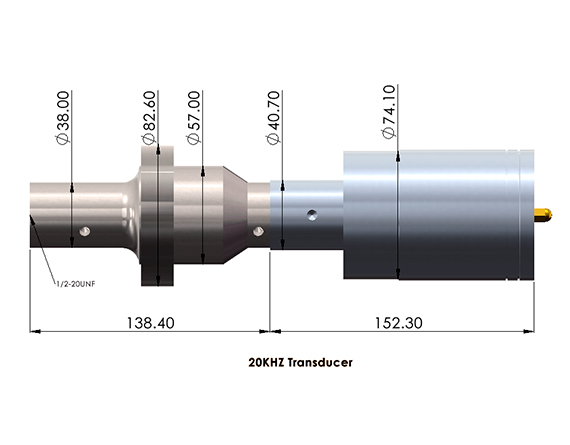

| Joint bolt | 3/8-20 UNF / 1/2-20 UNF |
Values describe the listed product or available configurations; they are not necessarily combined in one build. Confirm the model, tooling and application before ordering.
Product information reviewed: 2026-10-09
Useful answers.
What is the MC-CG-T2030 used for?+
A high-power 20 kHz transducer for ultrasonic welding. Mechanical and electrical compatibility must be checked for replacement use.
What should I provide for model selection?+
Share your material, part drawing, joint or cutting geometry, target output and installation constraints. For replacement components, include the existing generator, frequency and connection dimensions.
Can I confirm a configuration before ordering?+
Yes. Use the inquiry form to describe your application and the required model. Final tooling, electrical supply, interfaces and performance targets should be agreed for your project.
